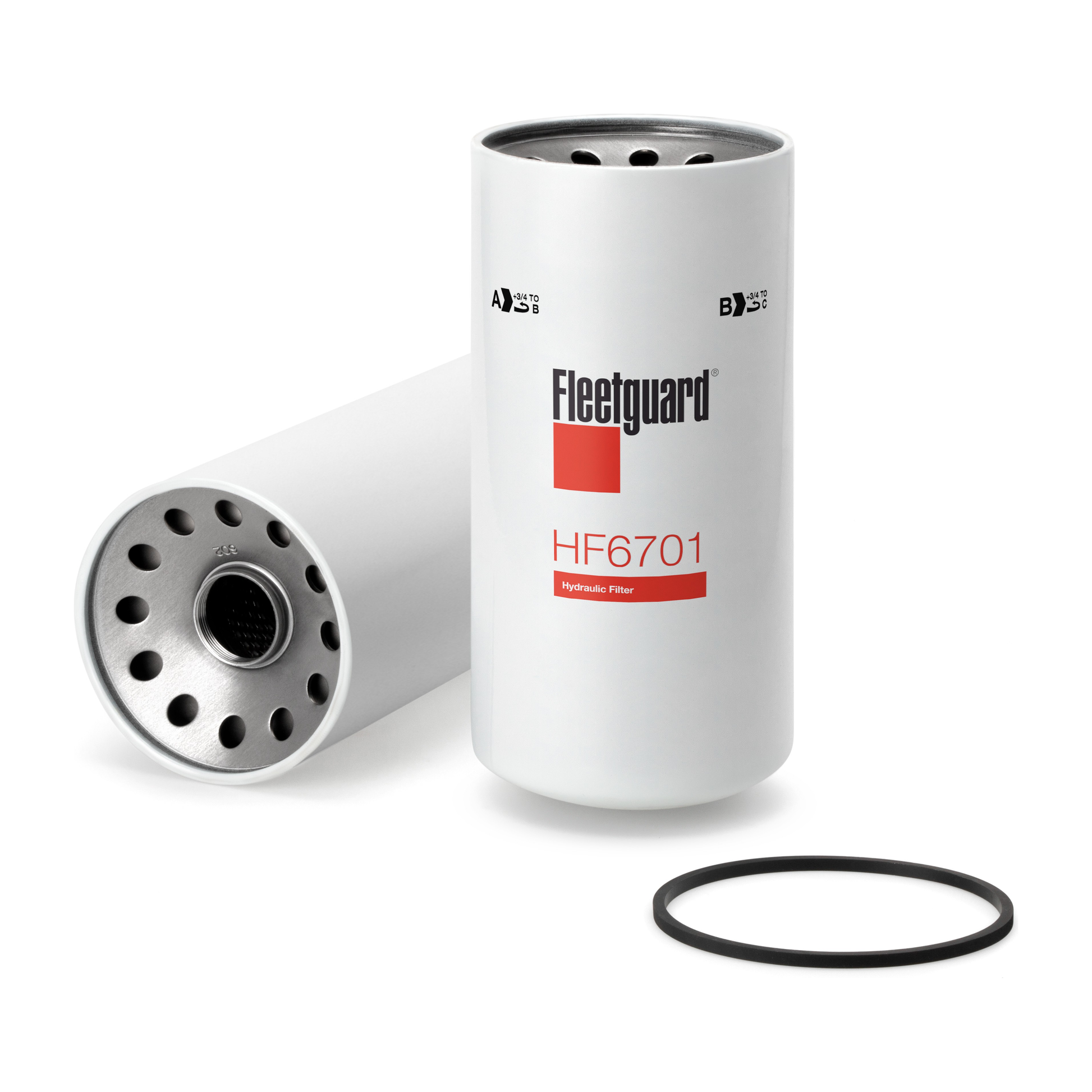

Fleetguard HF6701 Hydraulic Spin-On Filter (Replaces HF6139, AGCO 104309W91)
The Fleetguard HF6701 is a premium spin-on hydraulic filter featuring high-quality cellulose media, designed to protect your equipment’s hydraulic systems from wear and contamination. With proven performance across a wide range of demanding applications, it’s a trusted choice for those who value reliability and cost-effective operation.
This filter meets or exceeds OEM quality standards and is one of the first aftermarket replacements available for its class—offering top-level protection and unbeatable total cost of ownership.<
Key Features
/p>
- Genuine Fleetguard® quality
- Cellulose media for efficient particle capture
- Delivers high performance in agriculture, construction, mining, and industrial machinery
- Built to OEM specifications or better
- Direct replacement for AGCO 104309W91
🔧 Technical Specifications
| Filter Type | Hydraulic, Spin-On |
| Length | 272.01 mm |
| Largest Outer Diameter | 128.93 mm |
| Thread Size | 1 ½ – 16 UN-2B |
| Bypass Valve Opening (BPV) | 0 kPa |
| Seam OD | 128.93 mm |
| Standpipe | No |
Filtration Performance
| Efficiency Rating | Micron Size (TWA) |
| Beta = 2 | 1 micron |
| Beta = 20 | 8 micron |
| Beta = 75 | 12 micron |
*TWA = Typical Weighted Average. Always check OEM specifications before installing.
Cross Reference Replacements
- Donaldson P550250
- Baldwin B7011
- Pall HC7500SUK8H
- UFI ESF22NCA
- Hydac MFE1601032
- MP Filtri CSG150P05(A)
- AGCO 104309W91
- Fleetguard HF6139
- WIX 51860
- Donaldson P550251
- Mann WD13005
Compatibility
This filter is used across a variety of AGCO and Massey Ferguson applications:
- Engine Type / Reference: HF0671100, A45625
- Series 70: 2470, 2870
-
Massey Ferguson (AGCO):
- Engine Type / Reference: HF0671100, 104309W91
- Serie 600: 660
- Serie 8000: 8570, 8780
Replaces: HF6139, AGCO 104309W91
